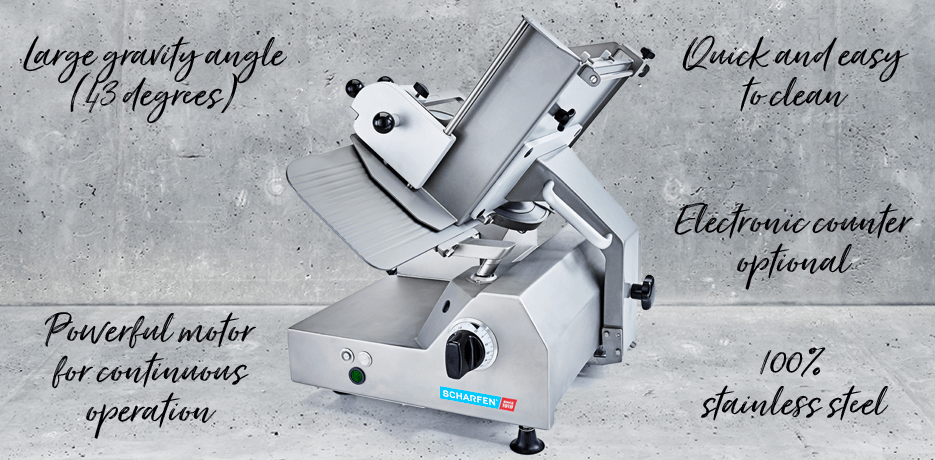

ATM 3

Gravity allrounder

Features

  • Semiautomatic slicing, changeable to manual operation
  • Large slicing capacityn
  • Suitable for wide range of products: meat, sausage, ham, cheese, roast beef, vegetables, fruits
  • Ideal for sticky products
  • 1-year warranty
Overall Dimension (l x w x h)730 x 540 x 600 mm
Counter Space Required (l x w)597 x 402 mm
Knife Diameter330 mm
Blade300 mm diameter, hollow ground, stainless hard chromed, stay sharp quality, toothed blade for bread-cutting available
Slice Thickness0-25 mm (infinitely variable)
Cutting Lenght270 mm
Cutting Height210 mm
Sound Level<70 dB (A)
Sharpening Deviceremovable
Weight60 kg
Voltage3-phase or 1-phase, voltage and cycles as required
Power Requirement0,6 kW, 2 motors
HygieneAll materials in contact with slicing products are 100% stainless steel, easy to clean components
Power Slicing98% power transmission to the blade due to direct gear drive

Special Executions

ATM-3 S

Ideal for slicing cheese and fresh meat. Ideal for slicing ham and large cuts of
meat (blade 330mm diameter)

Dimensions: 740 x 540 x 600 mm,
Cutting length/height: 260/225 mm

ATM-3 Teflon / ATM-3 S Teflon

With additional counter and infinitely Ideal for slicing cheese and fresh meat. Carriage, thickness plate, blade guard and blade are tefloned.

Easy and precise slicing, no smearing or sticking. Quick and easy to clean with dry cloth.

ATM-3 E / ATM 3 ES

With table and separate conveyor for version with infinitely variable speed and electronic counter
